600V Instrument Current Transformers 2
Name
600V Instrument Current Transformers 2
Features

   ●    Low cost

   ●     Water proof

   ●    More than 8 outline size

   ●    5.0,1.0Aac secondary ratios available

   ●    Overload current: 8 times nominal input current


Applications

   ●    Current,Power,Energy monitoring devices

   ●    Relay protection device


Specifications


   ●    Shell material:Engineering plastic

   ●    Frequency:50-400 Hz

   ●    Operating Temperature:-25 to +55-40 to +85optional

   ●    Operating Voltage:600Vac

   ●    Isolation:600V,BIL 10KV Full Wave

   ●    Accuracy class:compliant ANSI

   ●    RoHS compliant

   ●    CE-approved


Typical Products

Part
Number

Rated
Input
(A)
Turn
Ratio
Frequency
(Hz)
 Accuracy
Class
Outline
Dimensions
ID-L-W-H
(mm)
pdf

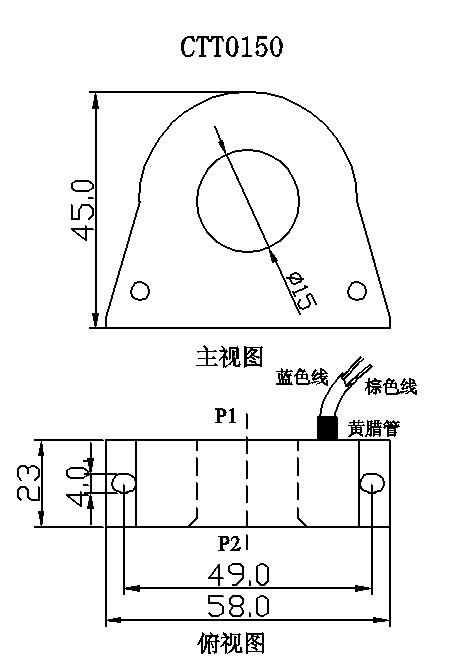

CTT0150.jpgCTT0150  5-150
1:1000
1:2000
1:3000
1:5000
50-4000.1
0.2
15-58-23-45
CTT0200.jpgCTT02005-2000.2
0.5
20-68-22-58

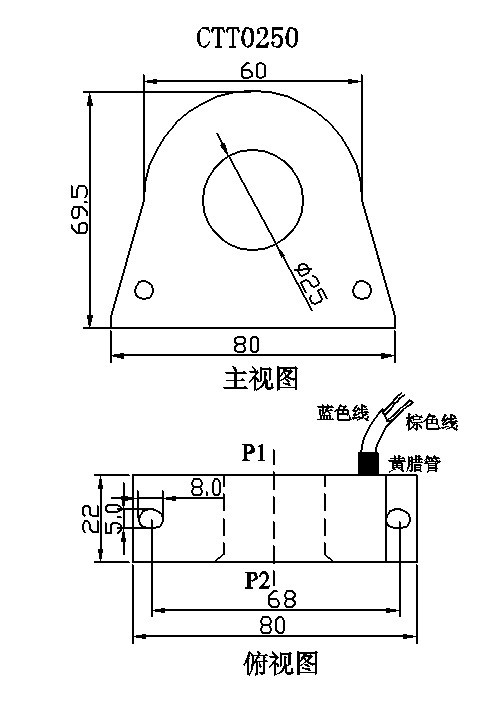

CTT0250.jpgCTT02505-2500.2
0.5
25-80-22-69.5
CTT0350.jpgCTT03505-5000.2
0.5
35-98.5-30-80

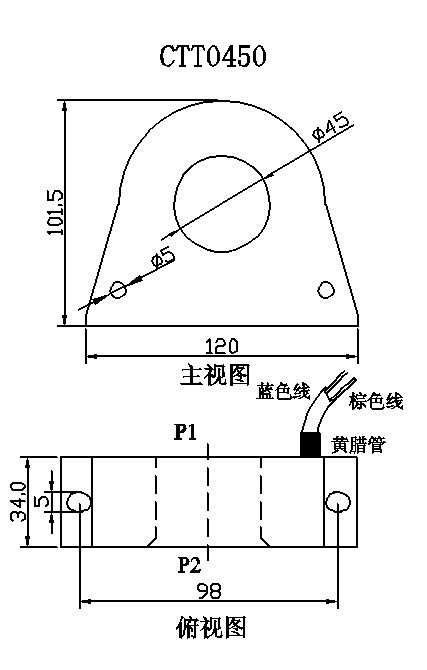

CTT0450.jpgCTT04505-5000.2
0.5
45-120-36-101.5

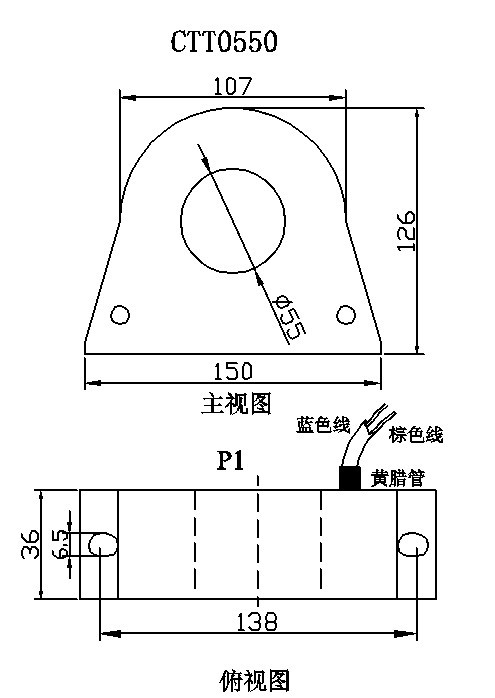

CTT0550.jpgCTT0550100-8000.2
0.5
55-150-36-126
CTT0720.jpgCTT0720100-10000.2
0.5
72-175-44-150
