PRODUCT SHOW
High Precision Voltage Transformers
Name
High Precision Voltage Transformers
Features

   ●    Low cost

   ●    Non-symmetrical mounting pattern

Applications

   ●    For applications that require exceptional accuracy with minimal phase angle error

   ●     Applications would include Current, power and energy monitoring devices.

Specifications

   ●    Exterior Material:PBT Resin UL flame retardant rating 94V-O

   ●    Interior Insulation:Epoxy Encapsulated

   ●    Isolation Current: 2500 Vrms for 1 minute

   ●     Frequency:50 to 5KHz

   ●    Accuracy Class:as defined in IEC 60044-2 Part 2 Voltafet Transformers Class 0.01,0.02,0.04

   ●    Operating Temperature:-25 to +55℃,-40 to +85℃ optional

   ●     Isolation Current:2500 Vrms for 1 minute

   ●    Dielectric Resistance:1000 M Ohms @ 500 Vdc

   ●    Surge Withstand: 5000V

   ●    RoHS Compliant

Typical Products
Photograph Part Number InputOutputFrequency
(Hz)

Secondary
Burden Resistance

  (Ohms)

Accuracy Class Outline Dimensions
pdf

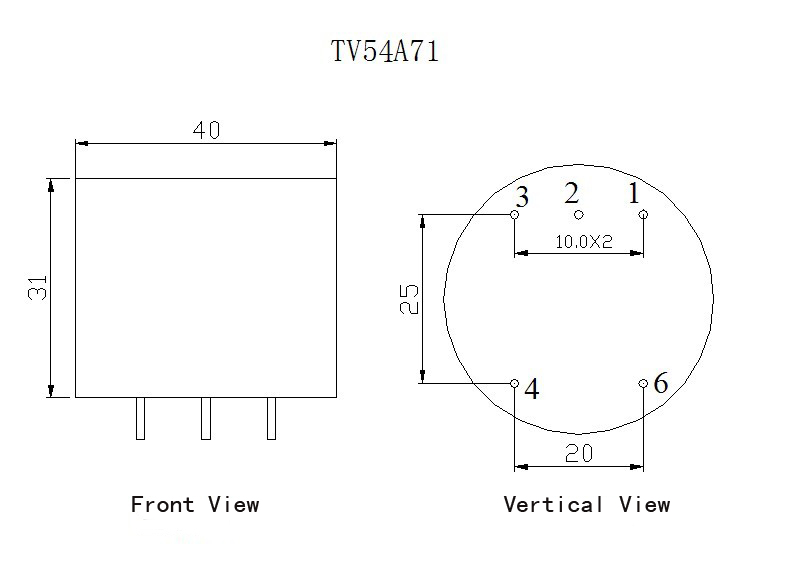

TV54A71.jpg TV54A71  Input:57.7V,100V,120V
 Output:0.1V--7.07V(Optional)
50-5K 0.5 0.01
0.02
0.05
OD-H
40.0-31.0

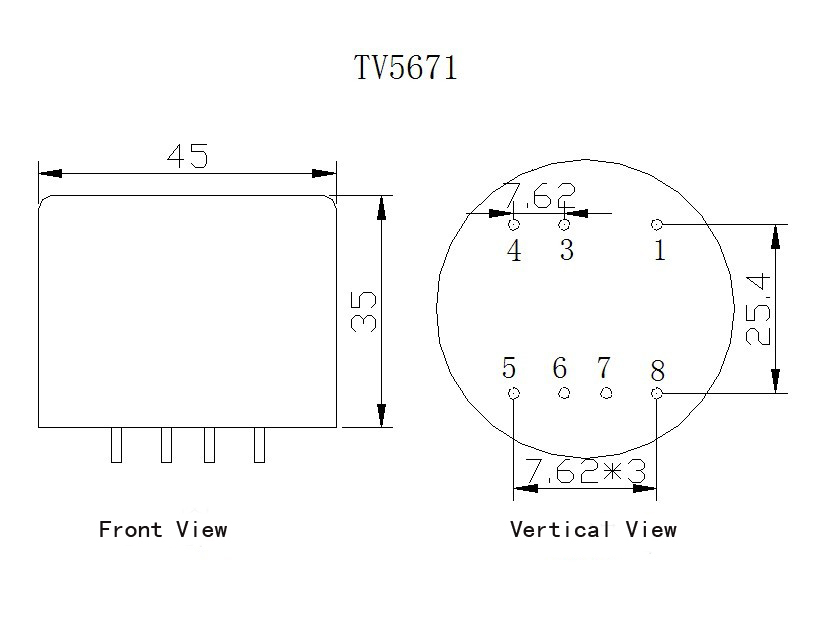

TV5671.jpg TV5671  Input:57.7V,100V,120V,150V
 Output:0.1V--7.07V(Optional)
50-5K 0.5 0.01
0.02
0.05
OD-H
45.0-35.0

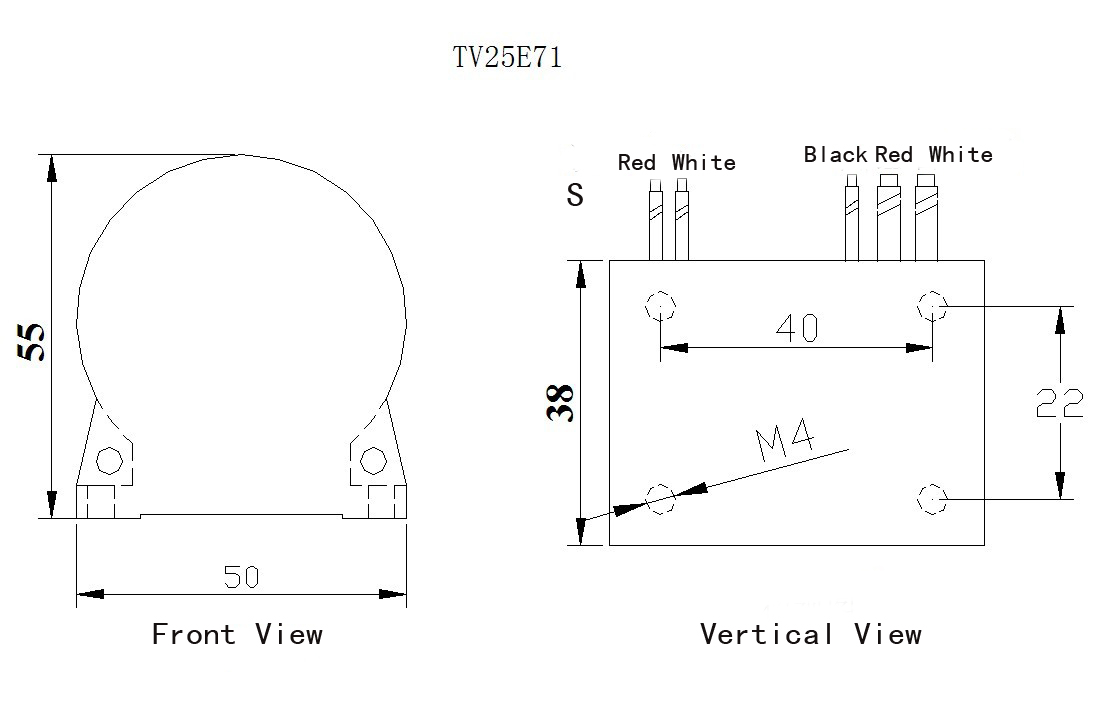

TV25E71.jpg TV25E71  Input:57.7V,100V,120V,180V,220V
 Output:0.1V--7.07V(Optional)
50-5K 0.5 0.01
0.02
0.05
L-W-H
50.0-38.0-55.0
