照片 |
型号 |
额定
输入
电流
(A) |
额定一次短路
电流/二次输出 |
稳态特性 |
暂态特性 |
外形尺寸
(mm) |
pdf |
 |

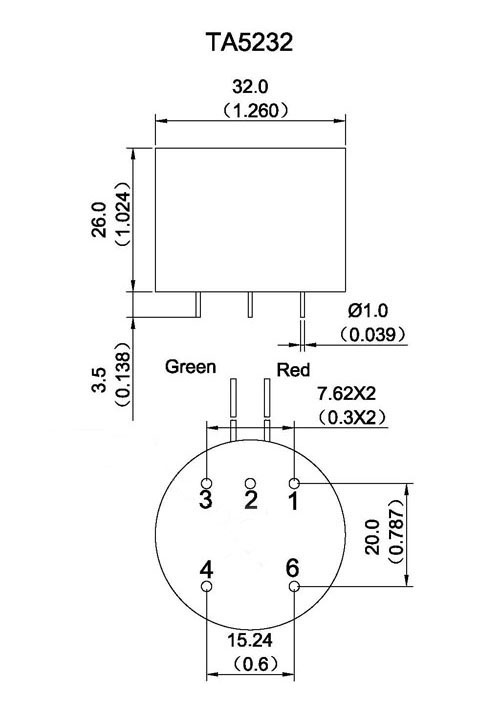

TA5232 |
1
|
20,30A/0.1V,0.333V...3.53V |
5-200%额定
输入电流范
围内0.2,0.5
级
，2-40
倍额定输入
电流范围内
1.0级 |
Tp=100ms,
偏移系数
cosθ=0.5，
基波有效值
误差≤5%。 |
OD-H
32.0-26.0 |  |
|
5 |
100,150A/0.1V,0.333V...3.53V |
 |

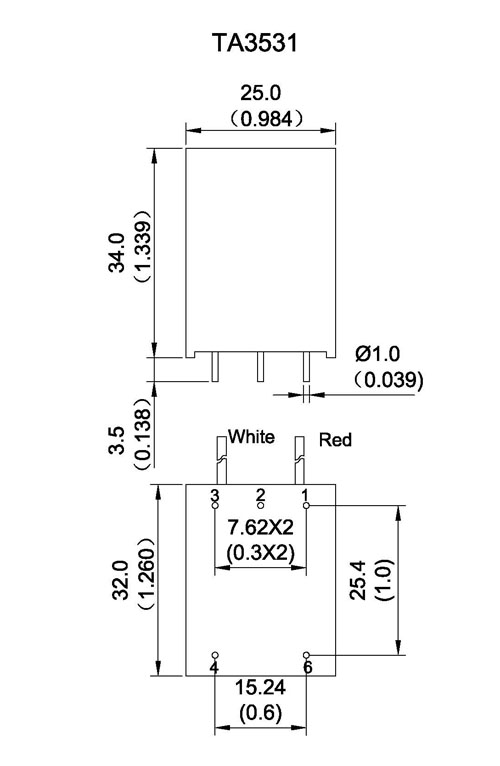

TA3531 |
1
|
20,30A/0.1V,0.333V...3.53V
|
L-W-H
32-25-34 |
|
5 |
100,150A/0.1V,0.333V...3.53V |
 |

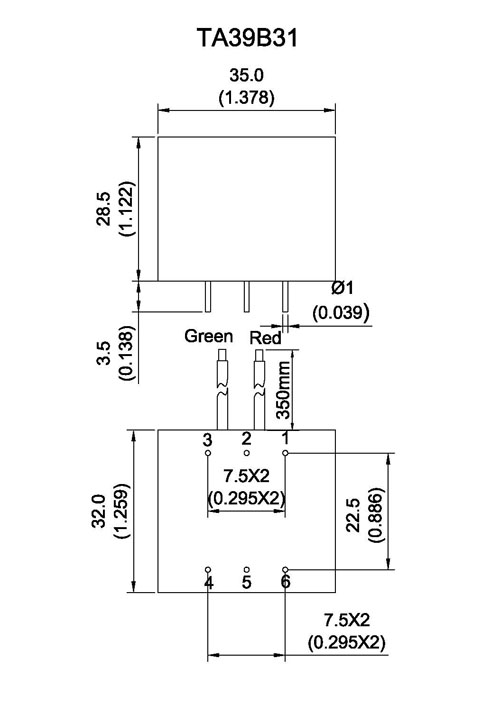

TA39B31 |
1
|
20,30A/0.1V,0.333V...3.53V |
L-W-H
35-32-28.5 |
|
5 |
100,150A/0.1V,0.333V...3.53V |
 |

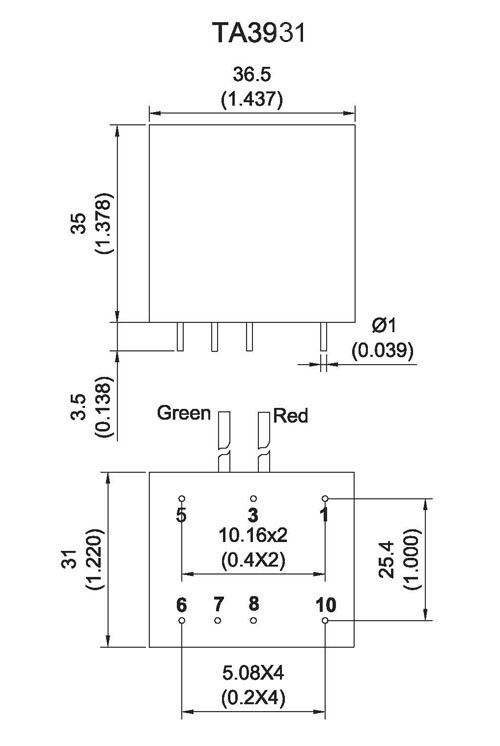

TA3931 |
1
|
20,30A/0.1V,0.333V...3.53V
|
L-W-H
36.5-31-35 |
|
5 |
100,150A/0.1V,0.333V...3.53V |
| TA32C53 | 1 | 20,30，40A/0.1V,0.333V...3.53V...7.07V |
5-200%额定
输入电流范
围内0.2,0.5
级，2-40倍
额定输入电
流范围内1.0
级 |
Tp=100ms,
偏移系数
cosθ=1.0，
基波有效值
误差≤5%。 | L-W-H 32.5-33-36.5 |
| 5 | 100,150，200A/0.1V,0.333V...3.53V...7.07V |
| TA33B52 | 1 | 20,30，40A/0.1V,0.333V...3.53V...7.07V | L-W-H 38-33-32.5 |
| 5 | 100,150，200A/0.1V,0.333V...3.53V...7.07V |
| TA33H52 | 1 | 20,30，40A/0.1V,0.333V...3.53V...7.07V | L-W-H 37.2-34.2-35 |
| 5 | 100,150，200A/0.1V,0.333V...3.53V...7.07V |
| TA33E53 | 1 | 20,30，40A/0.1V,0.333V...3.53V...7.07V | L-W-H 37.4-37-33
|
| 5 | 100,150，200A/0.1V,0.333V...3.53V...7.07V |
 | TA39A31
| 1 | 40A/0.1V,0.333V...3.53V
| L-W-H
35-32.0-32 |
| 5 | 200A/0.1V,0.333V...3.53V
|
 |

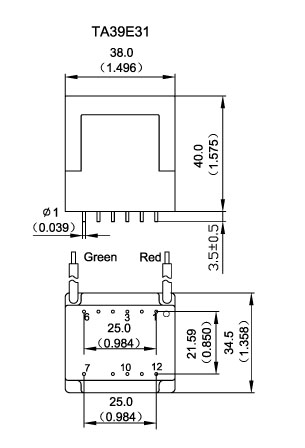

TA39E31 |
1
|
40A/0.1V,0.333V...3.53V
|
L-W-H
38-34.5-40 |
|
5 |
200A/0.1V,0.333V...3.53V |
 |

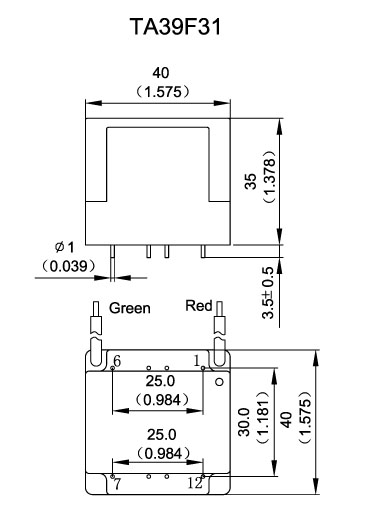

TA39F31 |
1
|
40A/0.1V,0.333V...3.53V
|
L-W-H
40-40.0-35 |
|
5 |
200A/0.1V,0.333V...3.53V |
|
TA39H31 |
1
|
40A/0.1V,0.333V...3.53V
|
L-W-H
45-45.0-40 |
|
5 |
200A/0.1V,0.333V...3.53V |
