Zero Sequence Current Transformer-1
Name
Zero Sequence Current Transformer-1
Features

   ●    Low Cost

   ●     More than ten kinds of external structure dimensions

   ●     Asymmetric PCB installation type / lead output type

   ●     Core Material: Nanocrystalline or Nickle Alloy



Applications

   ●    Suitable for residual leakage current circuit breaker, leakage current protection switch, leakage current protection circuit breaker, etc.



Specifications

   ●    Internal Insulation: Epoxy Resin Potting

   ●    Dielectric Strength: 2500Vac /min

   ●    Insulation Resistance: 1000 M Ohms @ 500 Vdc



   ●    Impulse Voltage: 5000V (1.2/50μs standard lightning wave) optional

   ●    Rated Burden: 100K Ohms

   ●    Environment Working Temperature-25 - +55, -40- +85 optional

   ●    Working Frequency: 50 to 400 Hz

   ●    Accuracy Class: IEC 61869-2 standard compliant

   ●    Environment Protection: RoHS compliant



Typical Products
Photo    ModelZero
Sequence
Current
Output
Voltage

Frequency
(Hz)

Accuracy
Class
Rated
Input
Current
Outline
Dimensions

ID-L-W-H(mm)
pdf

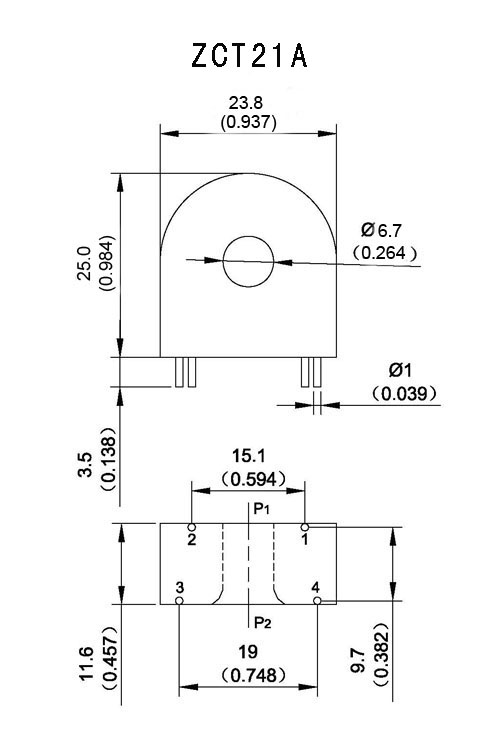

1501835759771129.jpg ZTA21A 10mA~1A 6mV~1V 50~400 0.5~1.0 50A 6.7-
23.8-11.5-25.0

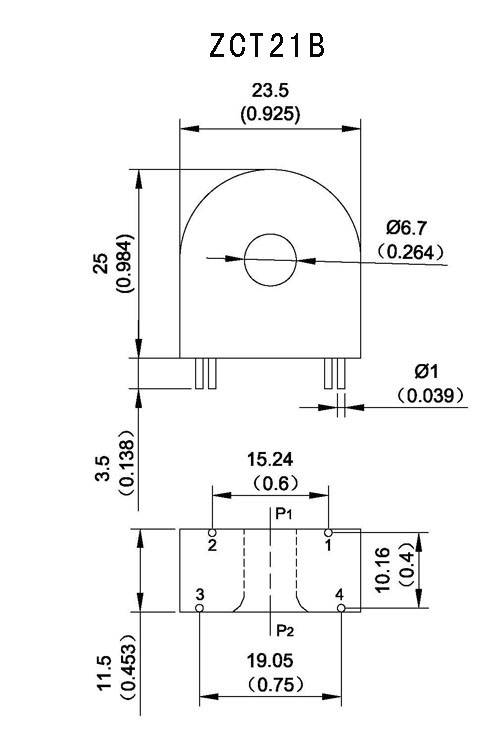

1501835766129430.jpg ZTA21B 50A 6.7-
23.5-11.5-25.0

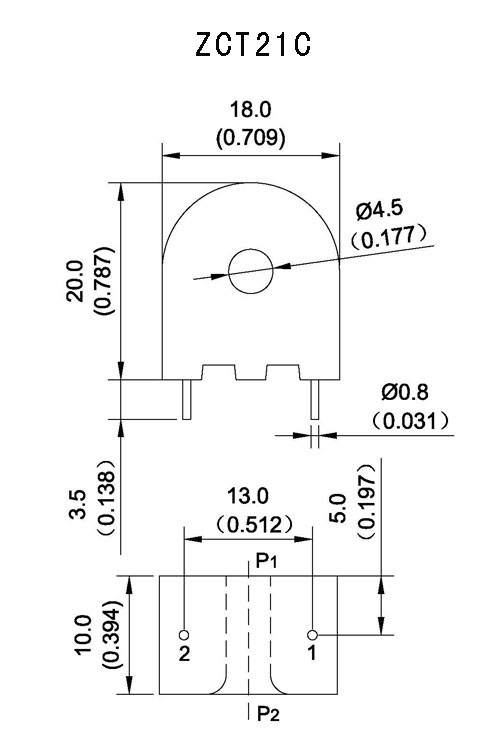

1501835775211199.jpg ZTA21C 15A 3.6-
18.0-10.0-19.0

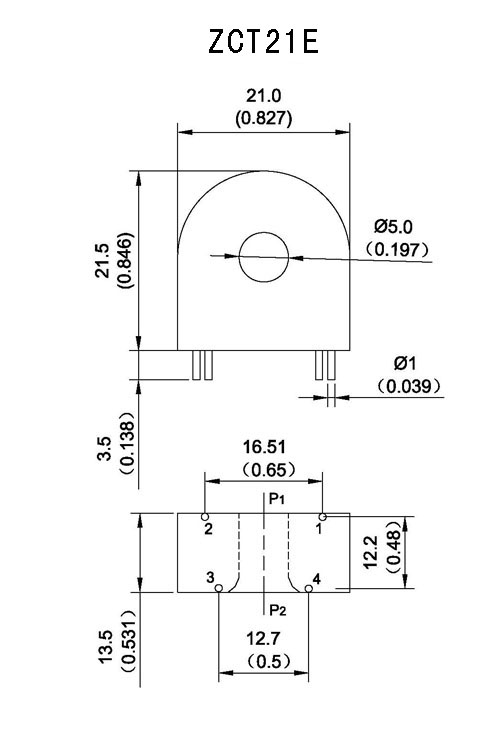

1501835783118466.jpg ZTA21E 20A 5.0-
21-13.5-21.5

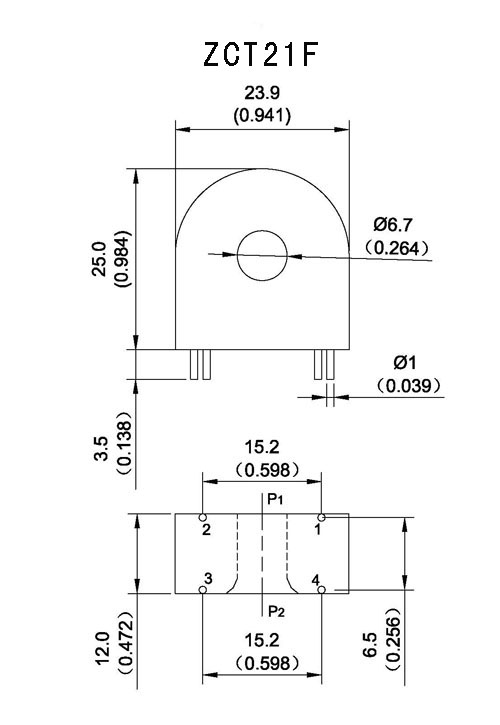

1501835791595904.jpg ZTA21F 30A 6.7-
23.9-12-25

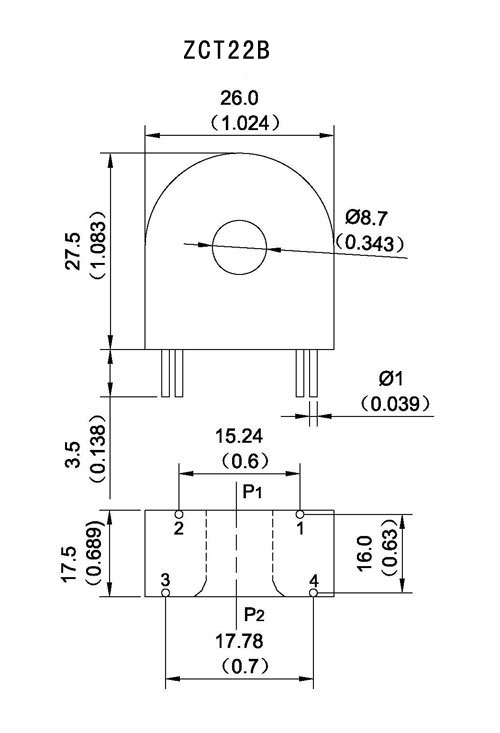

1501835800598572.jpg ZTA22B 10mV~2V 80A 8.7-
26-17.5-27.5

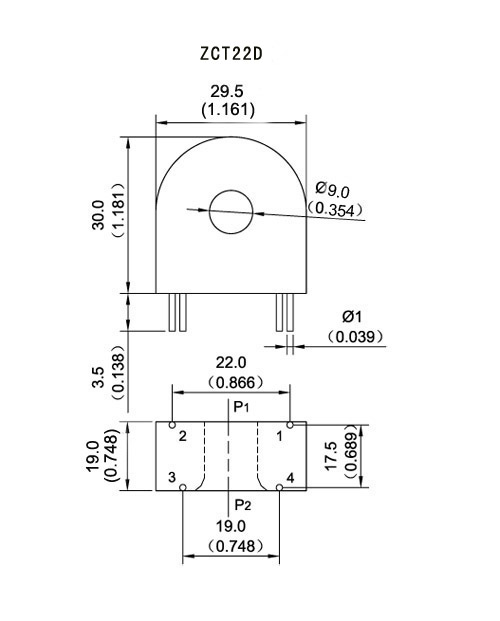

1501835808305869.jpg ZTA22D 100A

9.0-
29.5-19.0-30

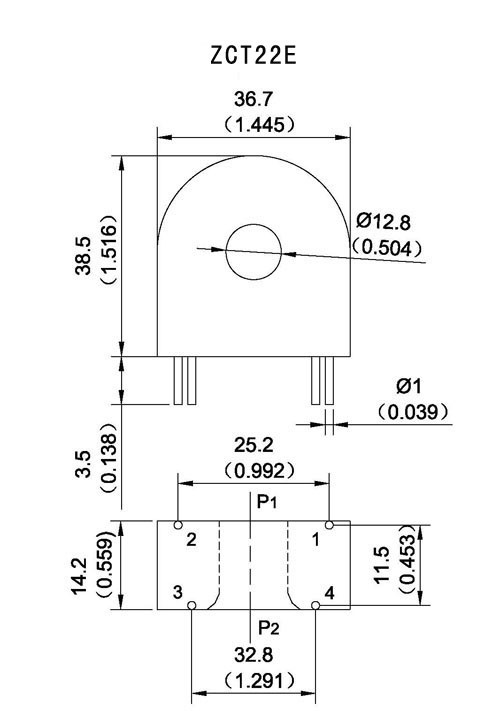

1501835819900396.jpg ZTA22E 150A 12.8-
36.7-14.2-38.5

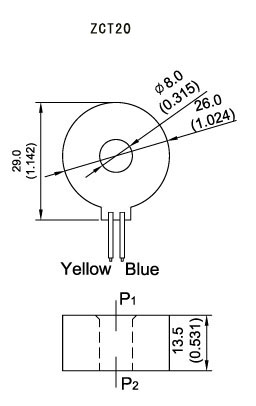

1501835830579465.jpg ZTA20 10mV~1V 20A

8.0-
26.0-13.5-28.6

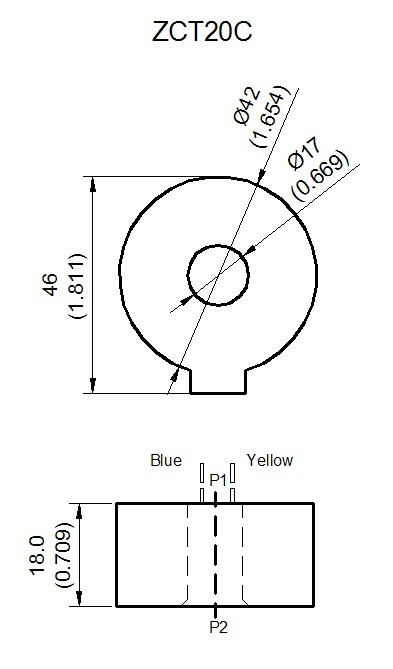

1501835842107829.jpg ZTA20C 10mV~3V 200A 17.0-
42.0-18-46.0
